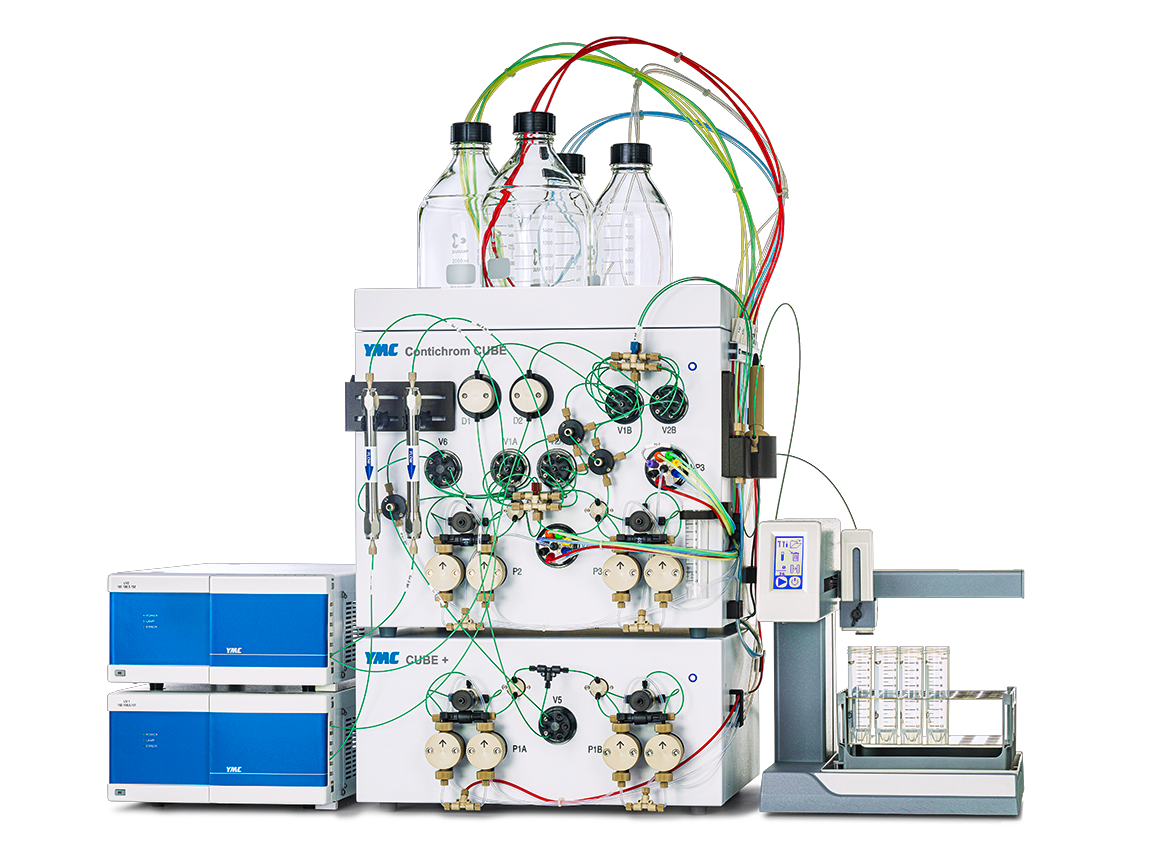

    Contichrom CUBE - Laboratory Scale Systems

    The Contichrom ® CUBE is versatile lab-scale liquid chromatography system with integrated dynamic process control functions. It offers unique capabilities for mastering complex separation challenges using our proprietary Twin-column processes. The user-friendly software enables rapid process development for batch, integrated-batch and continuous chromatography.

    Capabilities:

    • Single column batch, 2-step integrated batch (sequential polishing with in-line dilution) and alternating batch (flip-flop)
    • CaptureSMB ® - Continuous capture of antibodies and tagged proteins for high resin utilization, low buffer consumption, and high productivity
    • MCSGP - Continuous polishing for difficult separation challenges (oligonucleotides, peptides, multi-specific antibodies)
    • N-Rich ® - Automated enrichment and isolation of product-related impurities
    • Standard batch & Integrated batch with in-line dilution
    • AutomAb ® dynamic process control for CaptureSMB
    • AutoPeak ® dynamic process control for MCSGP

    Product Data Get quote

    The Contichrom ® CUBE is available in two versions:





    Process capabilities • CaptureSMB with AutoMAb dynamic process control
    • MCSGP with AutoPeak dynamic process control
    • N-Rich with AutoPeak dynamic process control
    • Single column batch chromatography with linear gradient capability
    • Integrated batch chromatography (Capture/Polishing + Desalting)
    • Integrated batch chromatography with in-line dilution between two columns (Capture + Polishing)
    • Integrated batch chromatography with linear gradient capability (Polishing + Polishing)
    • Two-column alternating batch chromatography (Flip-Flop)
    Operating software • ChromIQ operating software (English)
    • Integrated, intuitive software for operation & evaluation of batch and continuous chromatography
    • Wizards for batch chromatography, integrated 2-column chromatography, CaptureSMB, MCSGP & N-Rich
    • Easy-to-use graphical method programming wizards
    • Expert mode method editor for advanced users
    • Evaluation module optimized for both standard & continuous chromatography data analysis
    • Pause/continue functionality, also for continuous chromatography operations
    • Run logs with full run information
    • OPC compatible
    Pressure rating 100 bar (10 MPa / 1450 psi)
    Flow rate range 0.1 – 36 mL/min (Contichrom CUBE Combined 30)
    0.5 – 100 mL/min (Contichrom CUBE Combined 100)

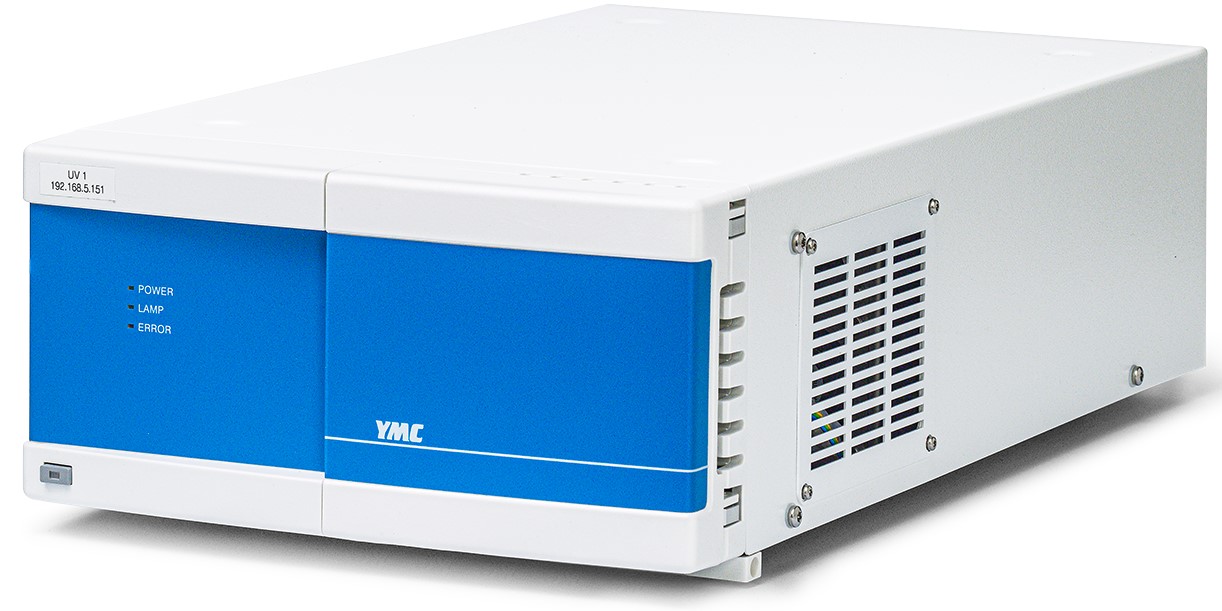

    UV detectors Variable wavelength UV detectors (External): 1 per column outlet, 2 total
    Channels: 4-channels per column position
    Wavelengths: 200 – 600 nm
    Light Source: Deuterium lamp
    Linear range: 0 - 1000 mAU
    Optical path length: 0.5 mm
    Wetted materials: PEEK, Quartz, PTFE, SST
    Conductivity / Temperature sensors Internal conductivity sensors: 1 per column outlet, 2 total
    Conductivity range: 1–250 mS/cm
    Temperature sensor
    Wetted materials: PEEK, Titanium
    pH Sensor 1 external pH probe with flow cell located at the product outlet
    pH measurement: 1 – 14
    Pressure rating: 7 bar
    Wetted materials: PEEK, Glass
    Pumps and pressure sensors 4x high precision double-piston-pumps with active seal wash:
    Pump 1A & Pump 1B (gradient pumps), Pump 2 (Wash pump), Pump 3 (Feed pump)
    4x manual purge valves (1 per pump)
    4x post-pump/pre-column pressure sensors (1 per pump)
    Wetted materials: PEEK, Synthetic ruby, Sapphire, Zirconia, UHMWPE, FFKM, PFA, ETFE
    Buffer inlets and outlets 18 inlets, 4 outlets total:
    2x 8-port buffer selection rotary valves for Pump 2 & Pump 3 (16 buffer inlets)
    2x single buffer inlets for pump P1A & P1B
    1x drain outlet (for pump purge)
    1x product outlet to the FOXY fraction collector
    2x outlets for collection of waste fractions
    Wetted materials: PEEK
    High pressure valves 6x multi-position rotary valves
    Electrical actuation
    Wetted materials: PEEK
    Computer 1x Stand-alone computer (Windows, 64 bit, full HD resolution, 1920 x 1080 or higher) with ChromIQ operating software
    Software compliance ChromIQ software with all essential elements of 21CFR Part 11 compliance:
    • User management functions for operational and data security
    • Pre-defined user groups for administrators, R&D and production users
    • Rights management for individual user groups
    • User accounts are password protected
    • Logging with time stamp and user name
    • Electronic signature with checksum of log and measurement files
    Other Cold room compatible
    Large buffer tray
    Runs resins and membrane stationary phases
    Dimensions (height x width x depth) CUBE module: 370 mm x 509 mm x 450 mm (14.6" x 20.0" x 17.7")
    CUBE+ module: 214 mm x 509 mm x 450 mm (8.43" x 20.0" x 17.7")
    External UV detectors (2 stacked): 270 mm x 280 mm x 463 mm
    Width of complete system with fraction collector and external UV detectors = 120 cm
    Weight CUBE module: 30 kg (67 lb)
    CUBE+ module: 17 kg (38 lb)
    Total: 47 kg (105 lb)
    External UV detectors (each): 7.5 kg (16.5 lbs)
    Flow Path Materials All biocompatible
    High pressure side capillaries: PEEK
    Low pressure side tubing: FEP
    Fittings: PEEK (PP + CTFE on buffer selection valves)
    Power Specifications Supply voltage: 100 - 240 V
    Maximum power: CUBE and CUBE+ combined: 170 W
    External UV detectors: 120 W each

    ChromIQ® is the operating software of the Contichrom preparative chromatography equipment. The software is designed to allow the users to operate the equipment without expert knowledge of the underlying processes. This is done through an interface where the process input templates are filled out by the operator showing immediately the process output data. In this way the right process can be designed before running it.

    The software uses wizard modules supporting different processes and process control functions, depending on the Contichrom product. The wizards are pre-programmed software modules for easy operation. The following ChromIQ software wizards are included in the different Contichrom products:

    ChromIQ® software modules
    • Batch Wizard
    • Integrated Batch Wizard
    • CaptureSMB® Wizard

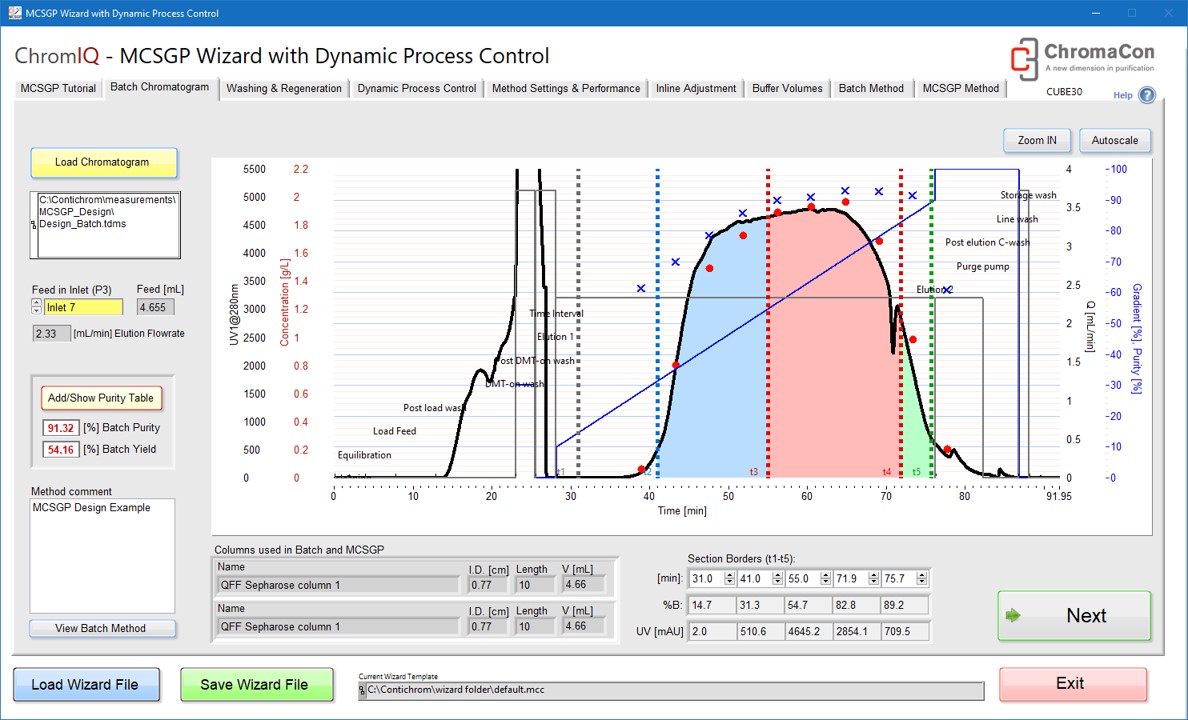

    • MCSGP Wizard
    • N-Rich® Wizard

    The wizards also help to convert the conventional batch process to the more efficient twin-column countercurrent processes.

    Dynamic process control tools like AutomAb® and AutoPeak® keep CaptureSMB® and MCSGP processes at an optimal set point during steady-state operation.

    ChromIQ® also has an expert operating mode for deeper control and autonomous expert programming. This function is deactivated by default and can be activated.

    The software contains all essential elements for 21CFR part 11 compliance:

    • Predefined user groups, administrators, R&D and production users
    • Rights management for individual user groups
    • User accounts are password protected
    • Logging with time stamp and user name (non-deletable)
    • Electronic signature with checksum of log and measurement files.

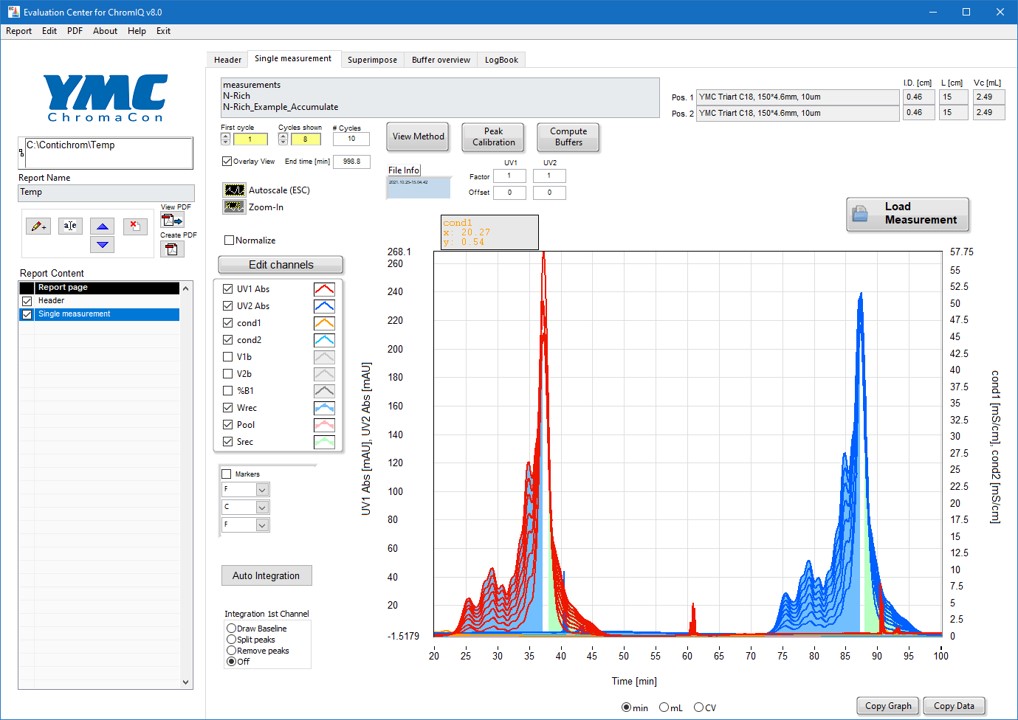

    ChromIQ software in use

  • Produktbild

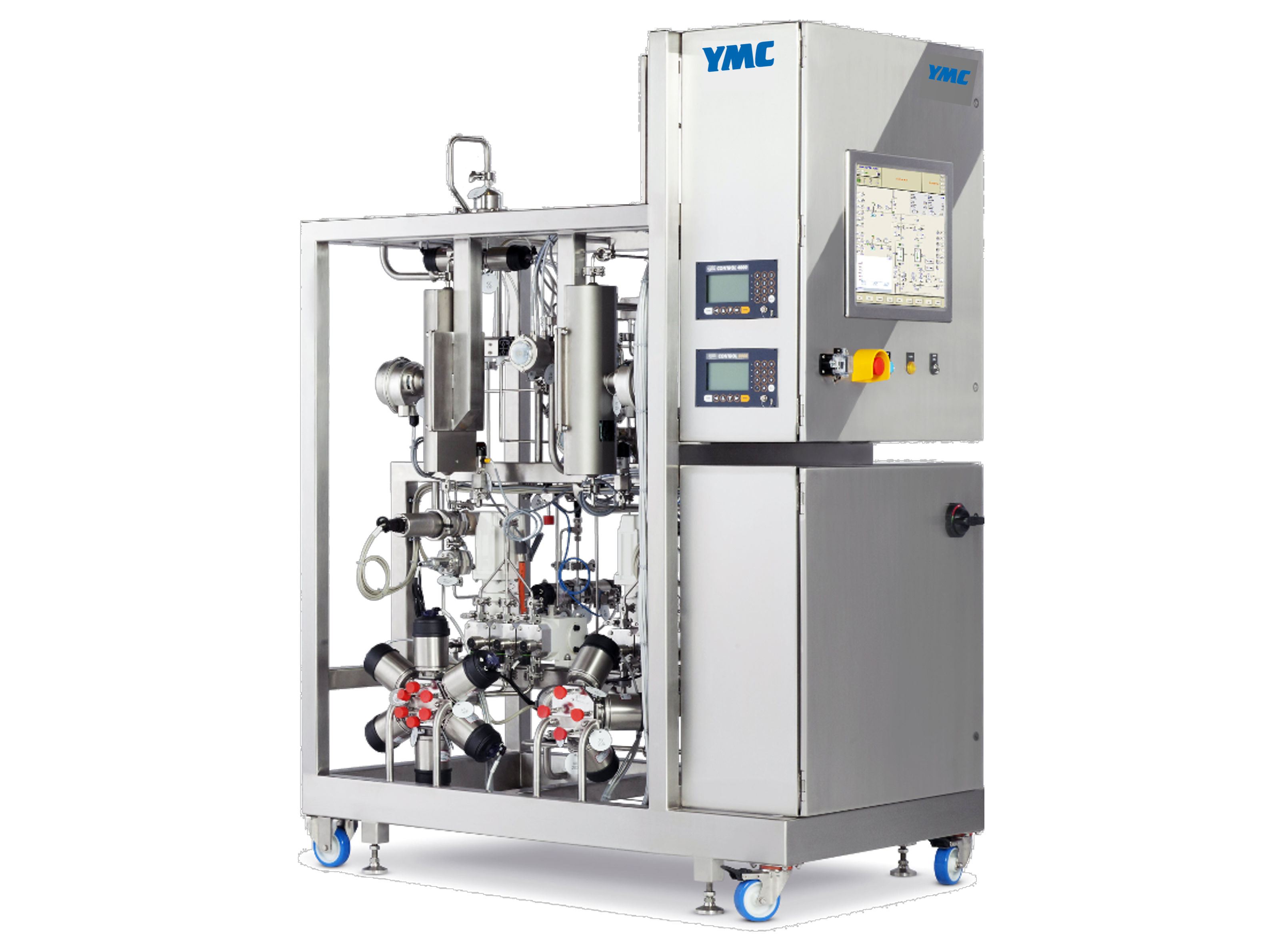

    Contichrom TWIN - Manufacturing Scale Systems

    • Contichrom ® TWIN  systems  are premium quality GMP skids designed to run MCSGP or CaptureSMB continuous processes. In addition, these systems have the flexibility to run single column batch, 2-step integrated batch (sequential polishing with in-line dilution) and alternating batch (flip-flop). Contichrom ® TWIN systems are available as LPLC or HPLC versions depending on the mode of operation or application. Choose from Alan-Bradley (standard) or optional Emerson Delta V control platforms. The Contichrom TWIN systems can be customized with single use interfaces for compatibility with disposable systems upstream and downstream.
    • The Contichrom ® TWIN LPLC systems are enabled with  CaptureSMB  and AutomAb ®  dynamic process control for robust continuous operation.
    • The Contichrom ® TWIN HPLC systems are enabled with MCSGP and AutoPeak ®  dynamic process control for robust continuous operation. Standard units operate at pressures up to 80 bar. The units can operate in environments classified for solvent use.

    Product Data Get quote

    Scale-up with YMC's Contichrom TWIN GMP-grade skids

    • Customizable GMP-grade skids based on standard Contichrom TWIN platform
    • Pilot to process scale
    • Flexible twin-column setup for batch and continuous chromatography
    • Uses the  Contichrom CUBE  chromatography system for easy process development
    • Best available hygienic pump technology from LEWA
    • Worldwide affiliates and support



    • YMC designs customized pilot- and process-scale GMP-grade skids featuring ChromaCon's twin-column processes. The Contichrom CUBE process development systems facilitates easy process transfer to the Contichrom Twin GMP systems. GMP skids based on ChromaCon's technologies can be customized to all scales.
    • Uniquely, the Contichrom TWIN systems can be connected upstream and downstream providing flexible single-use operations. This hybrid concept provides the best of two worlds of chromatography skids of stainless steel enabling performance and precision, combined with single-use plastic parts for allowing convenience.

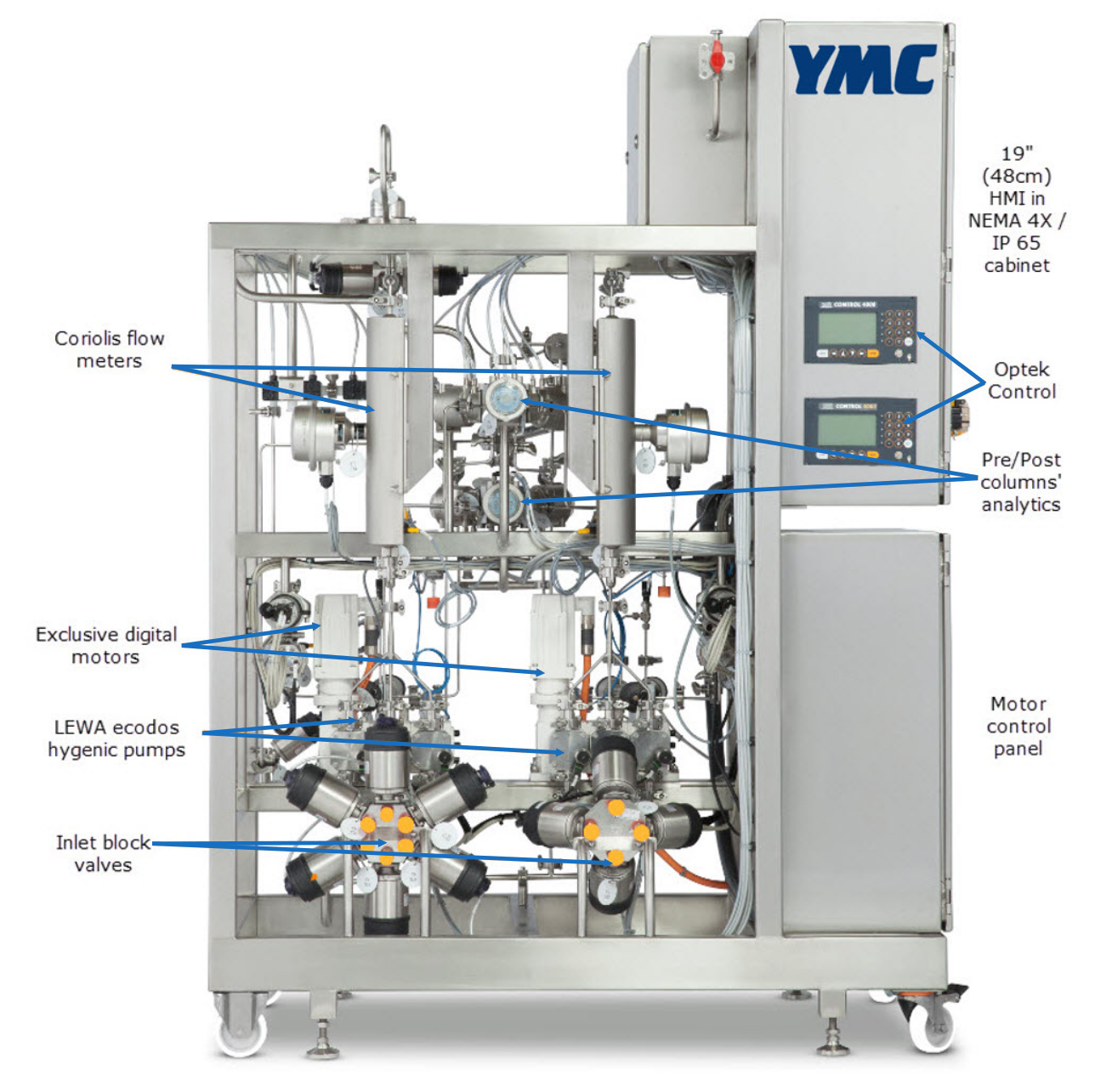

    The stainless steel based YMCEcoPrime Twin can be incorporated with single use solutions.

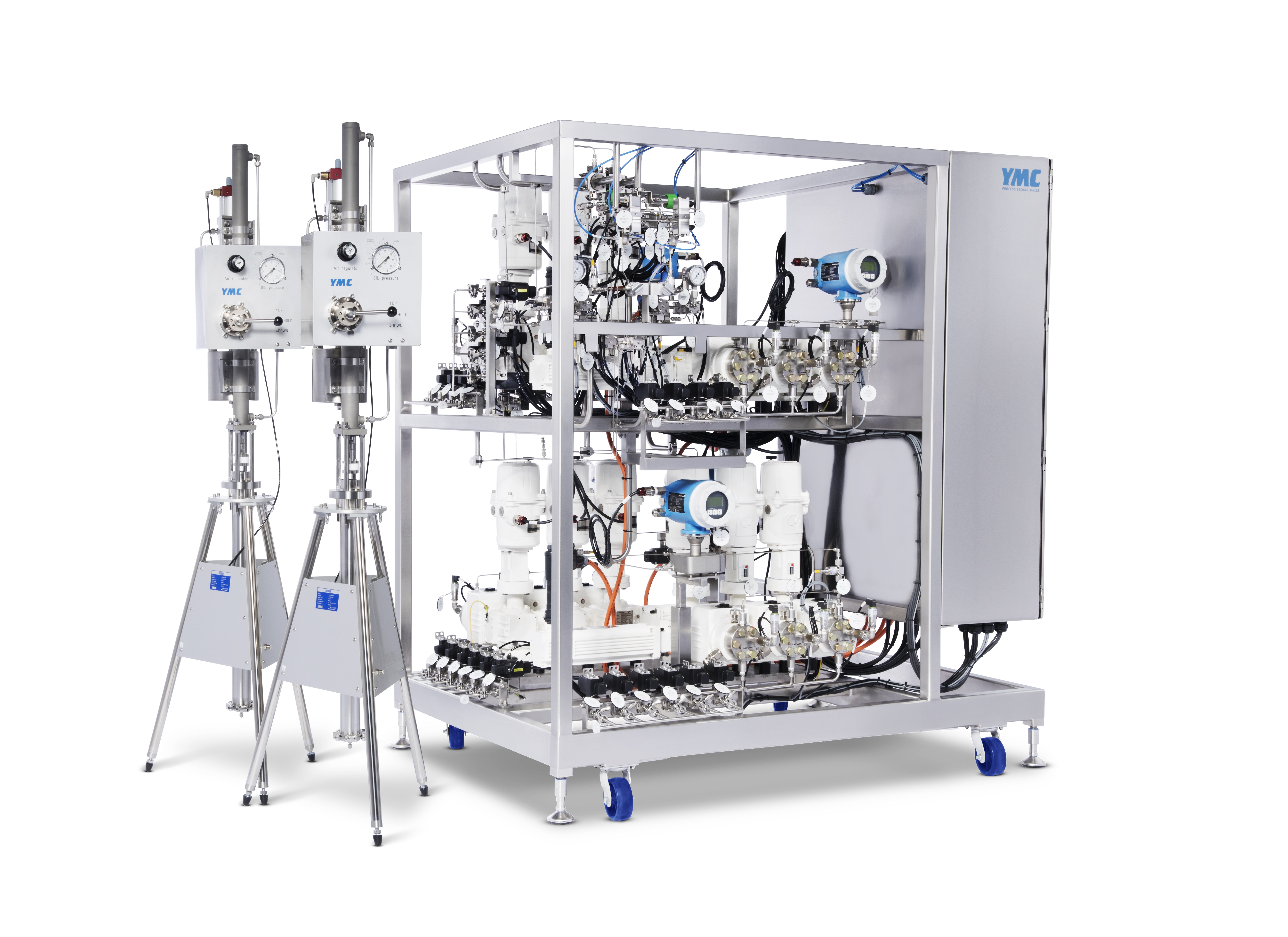

    YMC EcoPrime Twin - the GMP scale up equipment for the Contichrom CUBE

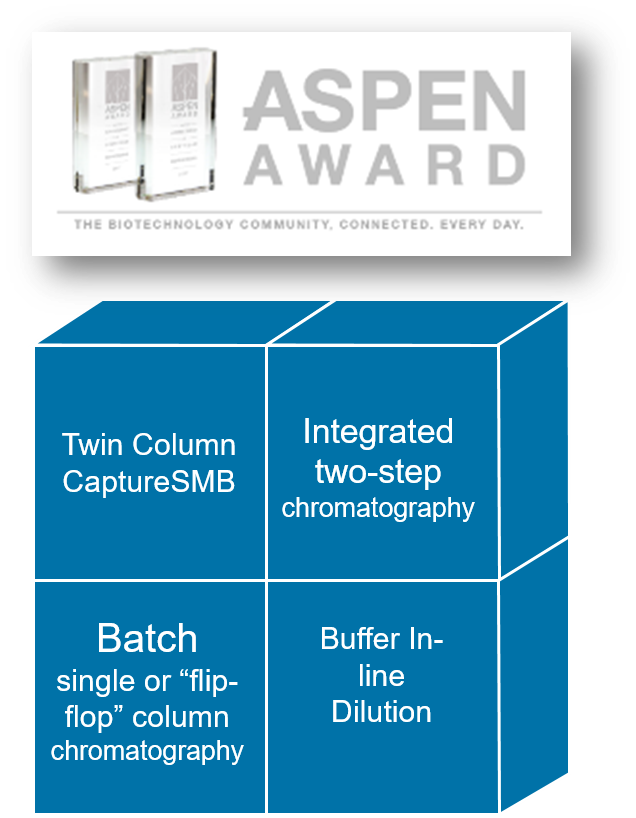

     The YMC Ecoprime Twin is an award winning system for CaptureSMB, integrated two-step batch, normal batch and buffer in-line dilution

    Please contact us and we will be happy to discuss your specific needs and answer any questions you have.

    For more information download the brochure or contact us

    Available standard flow rate ranges • Contichrom TWIN FPLC 100: 0.004 – 0.8 L/min
    • Contichrom TWIN FPLC 300: 0.02 – 3.3 L/min
    • Contichrom TWIN FPLC 500: 0.06 – 10.0 L/min
    • Contichrom TWIN FPLC 1000: 0.12 – 20.0 L/min

    For more information download the brochure or contact us

    Available standard flow rate ranges • Contichrom TWIN HPLC 100: 0.01 – 0.67 L/min
    • Contichrom TWIN HPLC 300: 0.03 – 3.3 L/min
    • Contichrom TWIN HPLC 500: 0.15 – 8.3 L/min

    • Custom sizes available for > 8.3 L/min
  • Produktbild

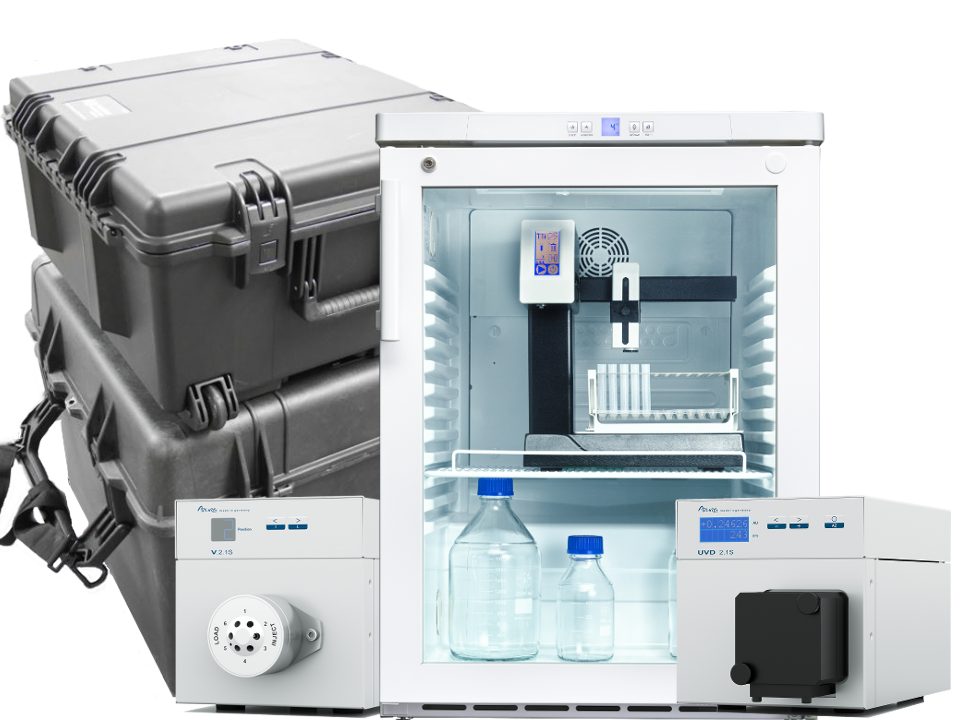

    Contichrom CUBE Accessories

    Contichrom CUBE optional accessories:
    • Teledyne ISCO Foxy R1 & R2 fraction collectors (+ multiple rack types)
    • Sample injection valve + loop set for precise loading of small samples (500 µL-20 mL)
    • Column selection valve for resin screening
    • Variable wavelength detectors - 1 channel - (190-500 nm)
    • Variable multi-wavelength detectors - 2 or 4 channels - (200-600 nm)
    • Column thermostat (5-80°C)
    • Cooling cabinet for Foxy R1 fraction collector

    Product Data Get quote

    Description

     Part No.

    Compatibility & notes


    Foxy R1

    300001
    Holds a single collection rack
    Includes one rack
    - 15 mL (18 mm diameter) tubes (72/rack)
    - 50 mL centrifuge tubes (36/rack)
    - 96-Well Microplates
    Collection schemes: time or volume intervals, threshold peak detection
    Wetted materials : valve - PEEK and FFKM, ferrules - ETFE, valve tubing - PTFE, drain tubing - vinyl
    Fits cold cabinet 300071
    W/D/H: 31.1, 33.0, 35.5 cm
    Learn more

    Foxy R2

    300002
    Two collection racks, automatic rack detection
    Includes two racks:
    - 15 mL (18 mm diameter) tubes (72/rack)
    - 50 mL centrifuge tubes (36/rack) - STANDARD
    - 96-Well Microplates
    - 250 mL bottles (18x)
    Collection schemes: time or volume intervals, threshold peak detection,
    Wetted materials: valve - PEEK and FFKM, ferrules - ETFE, valve tubing - PTFE, drain tubing - vinyl
    Does not fit cold cabinet CC 30003
    W/D/H: 31.1, 53.3, 37.8 cm
    Learn more

    15 mL centrifuge tube rack

    300052

    		 Hold 72x tubes per rack. Fits Foxy R1 & R2
    Foxy R1 / R2 Rack for 18 mm Diameter Tubes (72)

    50 mL centrifuge tube rack

    300049

    		 Holds 36x tubes per rack. Fits Foxy R1 & R2
    Foxy R1 / R2 Rack for 50 mL Centrifuge Tubes (36)

    13mm tube rack

    300054
    Holds 144x tubes per rack. Fits Foxy R1 & R2

    1.5 mL microcentrifuge tube rack

    300050

    		 Holds 60x tubes per rack. Fits Foxy R1 & R2
    96-well microplate rack 300048 Each rack holds 2x 96-well microplates. Fits Foxy R1 & R2 Foxy R1 / R2 Rack holds (2) 96-well microplates

    Description

     Part No.

    Compatibility & notes


    Cold cabinet for Foxy R1 fraction collector
    300071
    W/D/H: 60, 61, 85 cm
    Gross capacity: 140 L
    Gross weight: 48 kg
    Spark resistant
    Buffer & feed bottles cooling inside
    Accurate temperature setting between +2°C and +40°C
    Visual and audible door and temperature alarm
    Self closing door glass door
    Not for organic solvents

    Description

     Part No.

    Compatibility & notes

    Variable wavelength detector 300008 W/D/H: 105, 236, 129 mm (with flow cell)
    Weight: 1.5 kg
    Deuterium lamp
    190-500 nm
    Learn more
    Preparative flow cell 300010 Path length: 0.5 mm
    PEEK
    Connection: 1/16"
    Max flow rate: 250 ml/min
    Max pressure: 100 bar
    Learn more

    Description

     Part No.

    Compatibility & notes


    Variable wavelength detector
    300098
    4 Channel
    W/D/H: 280, 463, 135 mm
    Weight: 7.5 kg
    Deuterium lamp
    200-600 nm
    Flow cell included

    Preparative flow cell
    (Included with above UVDs)

    Path length: 0.5 mm
    PEEK
    Connection: 1/16"
    Max flow rate: 250 ml/min
    Max pressure: 300 bar


    Description

     Part No.

    Compatibility & notes


    Column thermostat
    300056
    The CUBE supports 2 column ovens each with space for one pre-eluent heating cartridge.
    One oven is therefore recommended per column.
    W/D/H: 150 / 310 / 470 mm
    Heating and cooling system: Microprocessor controlled Peltier element for heating and cooling, fan supported 2-way air circulation
    Temperature range: 5 – 85 °C
    Heating/cooling rate: 2 °C/min
    Temperature accuracy: ± 0.2 °C
    Temperature stability: ± 0.1 °C
    Leak sensor: Gas sensor
    Max. length of columns: 300 mm
    Max. recommended inner diameter: 10 mm
    Max. flow rate: 5mL/min
    Learn more

    Solvent pre-heating cartridge
    300057
    Cartridge for eluent pre-heating (cartridge capillary = 0.18 mm ID)
    Recommended for flow rates >0.5 mL/min, <5mL/min
    1 cartridge installed per column oven

    Description

     Part No.

    Compatibility & notes

    Dynamic mixer (biocompatible)
    300099
    (250V)
    300100
    (110V)
    Preparative scale mixing chamber:
    W/D/H: 80, 130, 125 mm
    Weight: approximately 1.6 kg
    Wetted part: titanium
    1.1, 4.8, & 5.9 ml mixing chamber options
    Flow rate: <100 ml/min
    Pressure rating: max. 250 bar
    Learn more

    Description

     Part No.

    Compatibility & notes


    PEEK sample loop set

    300007

    		 Containing 20 mL with adapters
    Nominal volumes 10 mL, 5 mL, 2 mL and 500 µL loops
    Actual volumes may differ, because of the ±0.05 mm (0.002”) tolerance of the tubing bore.
    Accuracy of large PEEK loops (0.8 mm, 0.030” bore) ±14%
    Accuracy intermediate loops (0.5 mm, 0.020”) ±21%
    Accuracy small loops (0.2 mm, 0.007”) ±65%    		 Contichrom accessory: PEEK sample loop set
    Column clamp 300019 Column outer diameter: 10 - 21 mm Contichrom accessory: 2 small column clamps
    Column Holder 300020  Column outer diameter: 10 - 50 mm Contichrom accessory: Column holder
    Reusable transport box for CUBE module 300040 Exterior W/D/H: 67.3 x 67.3 x 64.1 cm (26.50" x 26.50" x 25.25")
    Weight: 18.6 kg (41.0 lbs)    		 Contichrom accessory: reusable transport box for Contichrom CUBE module and Contichrom Discovery
    Reusable transport box for CUBE+ modules 300041 Exterior W/D/H: 57.2 x 53.6 x 29 cm (22.50" x 21.10" x 11.40")
    Weight: 11.2 kg (24.6 lbs)    		 Contichrom accessory: reusable transport box for CUBE+ modules
  • Produktbild

    YMC Columns and Resins

    Visit the website of your local YMC distributor for column and resin supplies

    Product Data Get quote

We use cookies to ensure we give you the best browsing experience on our website. Find out more on how we use cookies and how you can change your settings.
